Serial Data Send

This block sends data through a serial port (UART/RS-232/RS-485). Use it for serial communication with devices and equipment.

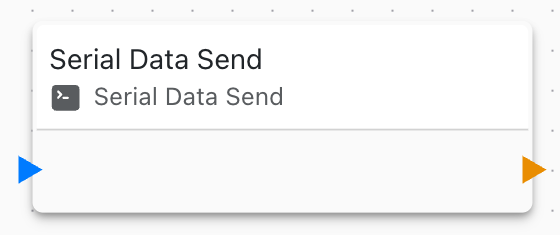

Serial Data Send Block

Overview​

The Serial Data Send block transmits data over serial communication interfaces, enabling connectivity with industrial equipment, sensors, and legacy devices.

Configuration​

  • Serial Port: Which UART/COM port to use
  • Data: Message or data to send
  • Format: Text, binary, or hexadecimal
  • Line Ending: None, CR, LF, or CRLF

Serial Port Settings​

Configure serial parameters:

  • Baud Rate: 9600, 19200, 38400, 57600, 115200, etc.
  • Data Bits: 7 or 8
  • Parity: None, Even, Odd
  • Stop Bits: 1 or 2
  • Flow Control: None, Hardware (RTS/CTS), Software (XON/XOFF)

Data Format​

Send data in various formats:

Text/String​

Plain text with optional line endings

Binary​

Raw binary data for binary protocols

Hexadecimal​

Hex-encoded for debugging and testing

Use Cases​

Common serial communication scenarios:

  • Send Modbus RTU commands
  • Control serial printers
  • Communicate with industrial PLCs
  • Send AT commands to modems
  • Control motor drivers
  • Interface with GPS modules
  • Legacy equipment integration

Line Endings​

Choose appropriate line ending:

  • None: Raw data, no terminator
  • CR (\r): Carriage return
  • LF (\n): Line feed
  • CRLF (\r\n): Both CR and LF

Match the protocol requirements of target device.

Hardware Interfaces​

Serial hardware types:

RS-232​

  • Point-to-point communication
  • Short distances (up to 15m)
  • Voltage levels: ±3V to ±15V
  • Common for PCs and embedded devices

RS-485​

  • Multi-drop bus topology
  • Long distances (up to 1200m)
  • Differential signaling
  • Industrial standard
  • Multiple devices on one bus

UART/TTL​

  • Direct logic level (3.3V or 5V)
  • Board-to-board communication
  • Short distances
  • Simple hardware

Buffer Management​

Serial send buffer:

  • Queued for transmission
  • Hardware flow control support
  • Non-blocking operation
  • Automatic buffering

Error Handling​

Handle serial transmission errors:

  • Buffer full: Wait or reduce send rate
  • Timeout: Check baud rate and wiring
  • Framing error: Verify serial parameters
  • Overrun: Reduce data rate

Monitor errors with On Serial Error events.

Timing Considerations​

Serial timing is critical:

  • Calculate transmission time based on baud rate
  • Add delays between messages if required
  • Consider turnaround time for half-duplex (RS-485)
  • Respect device response times

Modbus RTU Example​

Send Modbus RTU command:

  1. Build Modbus message (address, function, data)
  2. Calculate CRC-16
  3. Append CRC to message
  4. Send via Serial Data Send
  5. Wait for response with On Serial Data

Performance​

Optimize serial transmission:

  • Use appropriate baud rate
  • Batch data when possible
  • Implement flow control
  • Monitor buffer usage

Dynamic Data​

Build messages dynamically:

  • Include variable values
  • Format sensor readings
  • Construct protocol packets
  • Calculate checksums

Protocol Implementation​

Implement serial protocols:

  1. Format command message
  2. Send with Serial Data Send
  3. Wait for response
  4. Parse response data
  5. Handle errors and retries

Linking to Settings​

Serial parameters can be linked to settings for:

  • Runtime baud rate configuration
  • Port selection
  • Protocol parameters

Security​

Serial security considerations:

  • Physical access to serial ports
  • No encryption (use application-layer security)
  • Validate responses
  • Implement authentication at protocol level

Troubleshooting​

Common serial send issues:

  • No response: Check baud rate, wiring, and device power
  • Garbled data: Verify serial parameters match device
  • Timeout: Increase timeout or check connections
  • Partial transmission: Check buffer size and flow control
