PWM Cycle

Loading...

This project gradually increases the intensity of a PWM lamp, setting it to zero when the intensity level reaches 100%.

Schematic

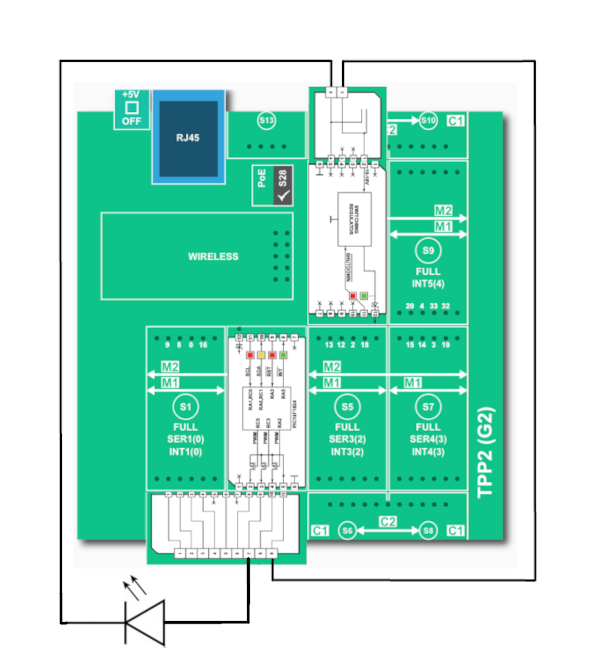

Wiring schematic for TPP2 (G2) with an external LED connected to a PWM Tibbit's channel 0.
